ISCAR has developed a comprehensive portfolio of advanced metal cutting solutions to address the growing demands of high-mix, high-precision manufacturing, where productivity, dimensional accuracy, and process flexibility are essential.
Its technologies combine advanced carbide grades, coating systems, modular tooling, optimized cutting geometries, and digital machining support to improve machining performance across a wide range of materials.

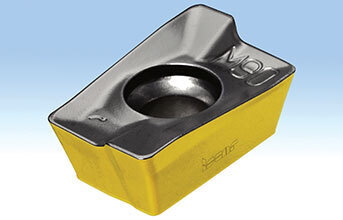

At the core of its offering is SUMOTEC technology, which addresses the extreme thermo mechanical conditions generated during metal cutting, where temperatures at the chip-tool interface can exceed 800 1000°C. SUMOTEC PVD-coated grades (Fig. 1) use TiAlN and AlTiN based nano-layer coatings to provide high hot hardness, oxidation resistance, and low friction, reducing built-up edge formation and edge chipping while machining stainless steels, nickel-based superalloys, and titanium alloys.
In contrast, SUMOTEC CVD coated grades incorporate TiCN and Al₂O₃ layers that act as thermal barriers, minimizing diffusion wear and plastic deformation during high-speed machining of ISO P and K materials while delivering predictable tool life in high-volume production.
To improve flexibility in high mix manufacturing, ISCAR's LOGIQUICK modular tooling platform enables rapid tool changes through standardized mechanical interfaces that maintain micron level repeatability, high rigidity, and vibration resistance.
The system reduces setup time, eliminates repeated tool qualification, and lowers tooling inventory while maintaining dimensional accuracy and surface finish. ISCAR's LOGIQ-3 QUICK drilling system (Fig. 2) combines rigid carbide drill bodies with exchangeable solid carbide heads optimized for ISO P, M, and S materials.
Precision engineered coolant channels improve chip evacuation and thermal stability, enabling reliable drilling at depth-to-diameter ratios exceeding 5×D. Complementing this system are solid carbide drills featuring IC908 and IC948 grades, which deliver improved wear resistance, hole quality, and tool life.

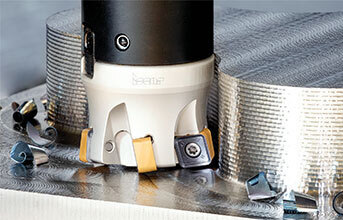

For milling and turning applications, ISCAR's HELI DO cutters reduce cutting forces and suppress chatter through double-sided helical cutting edges, making them ideal for heavy roughing. FAST FEED cutters (Fig. 3) combine shallow axial depths of cut with extremely high feed rates to achieve high metal removal rates while reducing spindle load.
In turning operations, NEODO inserts feature reinforced cutting edges and advanced chip-breaker geometries that provide high edge strength, thermal stability, and improved tool economy. The technologies have delivered measurable gains across industries.
In aerospace machining of titanium alloys, the combined use of SUMOTEC turning inserts and HELI DO milling cutters has achieved tool life improvements of up to 40% and cycle time reductions of approximately 20%.
Automotive manufacturers using LOGIQ-3-QUICK drilling systems have also reported consistent hole quality, extended tool life, reduced tool changes, and improved overall equipment effectiveness.
Together, ISCAR's advanced tooling and digital technologies provide manufacturers with a scalable solution for achieving higher productivity, superior precision, and enhanced process stability.
